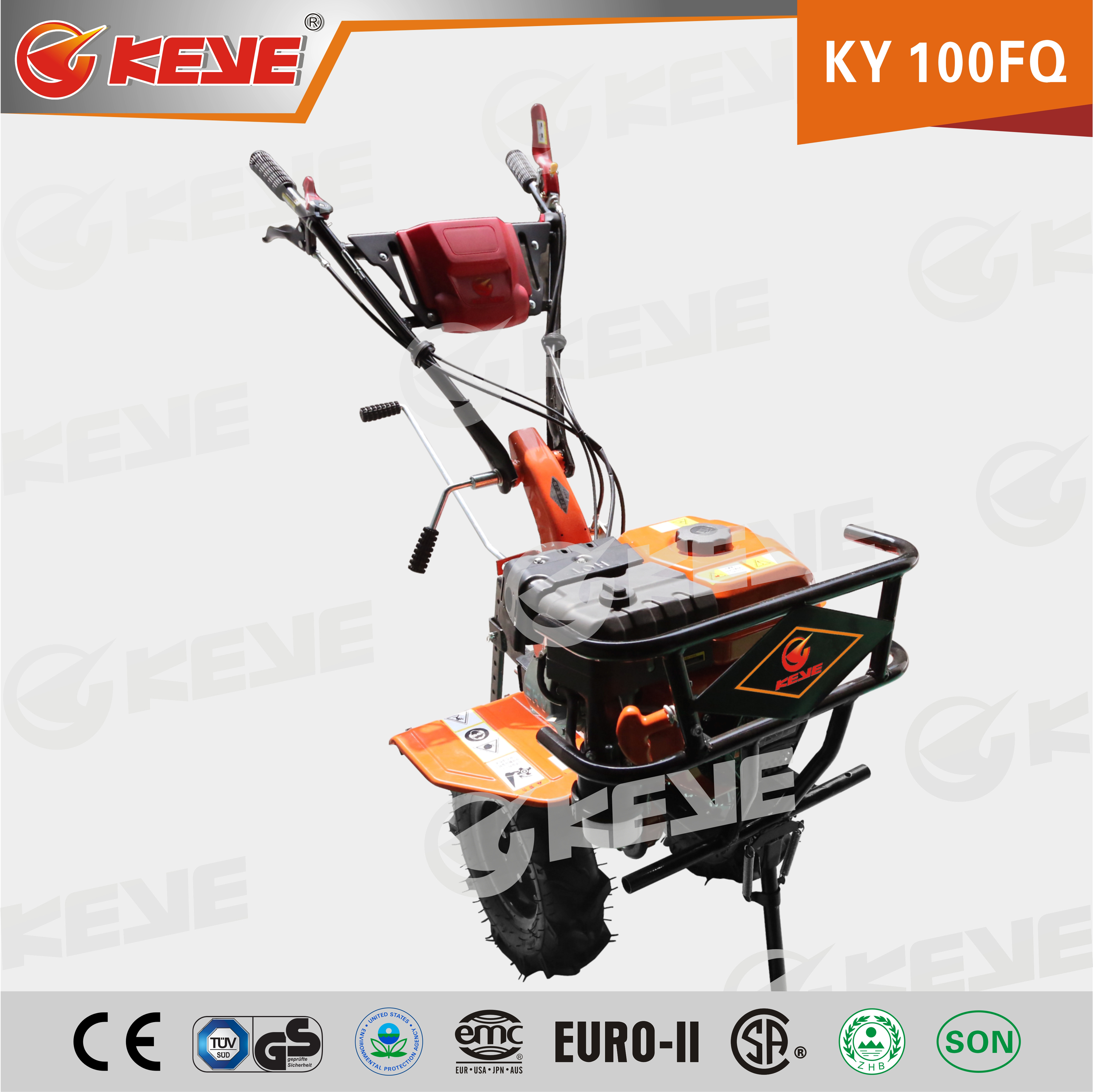

1、Optional semi-enclosed bumper fully protect the engine.Most suitable for orchards and woodland
2、Water pump or sprayer can be attached with more functions like pumping,irrigation,insecticide sprayer,cleaning an so on
3、Full gear-drive transmission mode with high transmission efficiency and reliable and durable performance
4、Wet friction plate clutch engage quickly and disengage completely,with a longer work life than taper clutch
5、Rice and wheat harvester
6、Optional semi-automatic steering handlebar can turn left and right easily
7、Optional Oil-bath air filter better dust filtration effect to lengthen the working life of engine
|
|

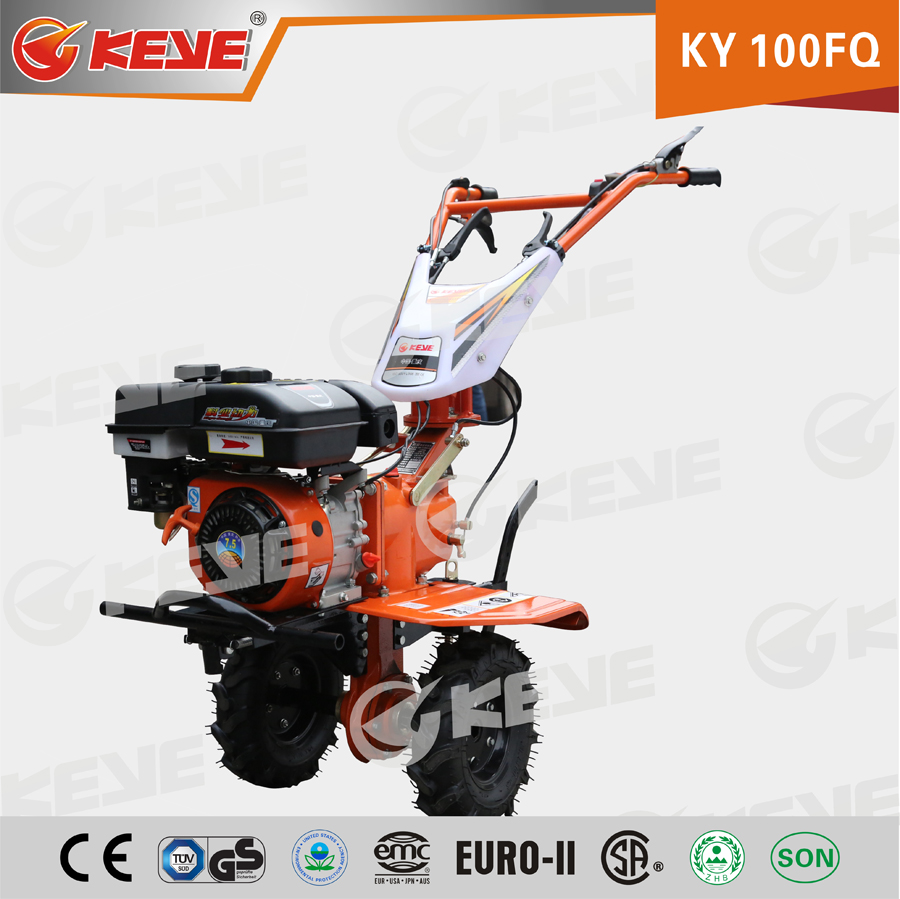

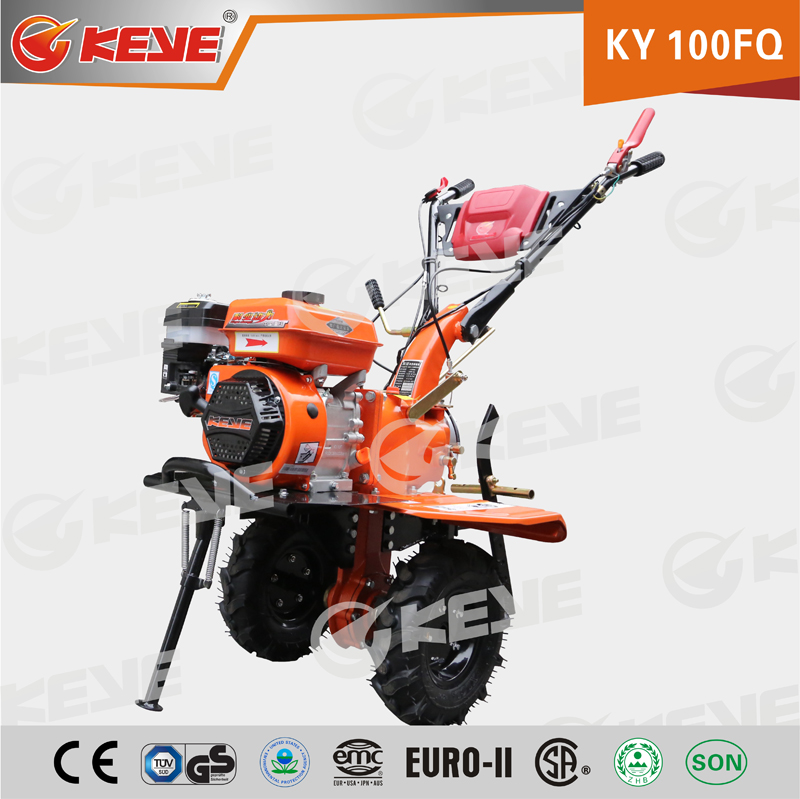

KY100FQ |
|
Gear shifting |
R:1 F:1,2 |
|
Transmission |
Gear |
|
Clutch |
Wet friction disc clutch |
|
Tilling depth |
≥100mm |
|
Tilling width |
1000mm |
|
Wheels |
3.50-6/4.00-8/4.00-10/5.00-12 |
|
Blades |
3 pieces, 4 groups dry-land blades |
|
Engine model |
170F |
|
Rated output |
4.2/3600kW/rpm |
|
Displacement |
212ml |
|
Fuel consumption |
≤395g/(kW.h) |
|
Starting mode |
Recoil start |
|
Package mode |
Carton + hob |
|
Dimensions |
760 x 570 x 620mm |
|
Net/gross weight |
75.5/86kg |
|
Qty/20'GP/40'HQ |
90/252 set |
